  Description

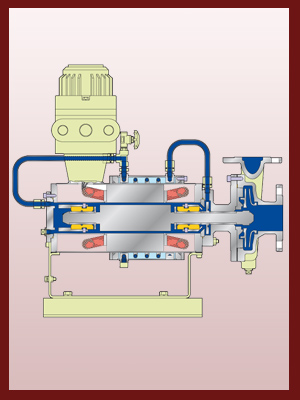

The pump and motor are connected by an adaptor. The adaptor separates thermally the pump from the motor and prevents heat transfer from the pump to the motor. In the High Temperature Type, an independent circulating system is provided for cooling the motor and lubricating the bearings. Circulation is effected by the auxiliary impeller located at the fore end of the rotor chamber. A heat exchanger is fitted to the outer wall of the stator assembly to cool the circulation liquid.

  Application

Thermic fluid
Vegetable oil
High temperature hydrocarbons

  Operating Range

Flow : 1.0 m3/hr to 500 m3/hr
Head : 150 m
Temp : up to 400° C
Pressure : 30 bar
